No Water Slam Short Pattern Metal Seat Swing Wafer Check Valve

Name: No Water Slam Short Pattern Metal Seat Swing Wafer Check Valve
Brand: TEKO
Price: 1 USD

Brand Name : TEKO

Model Number : H74X

Certification : CE/PED, API

Place of Origin : Made in China

MOQ : 1 piece

Price : By negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 350 tons per year

Delivery Time : 15 working days after deposit

Packaging Details : By export wooden cases

Trim Material : Metal Seat, Soft Seat

Application : Non Return

Port Size : 2"-20"

Working Theory : SIngle Door

Design Standard : API 594

Installation : Horizontal Or Vertical (Upstream)

Contact Now

No Water Slam Short Pattern SS Metal Seat Swing Check Valve Wafer

Application:

Wafer Swing Check Valve is used for pipes under following conditions: nominal pressure 1.0 Mpa-42.0 Mpa, Class150~2500; nominal size DN15~1200mm; working temperature: -195~540℃. Applying different materials, it can be used for water, steam, oil, nitric acid, acetic acid, oxidizing liquid and carbamide etc.

Main Material

No Water Slam Short Pattern Metal Seat Swing Wafer Check Valve

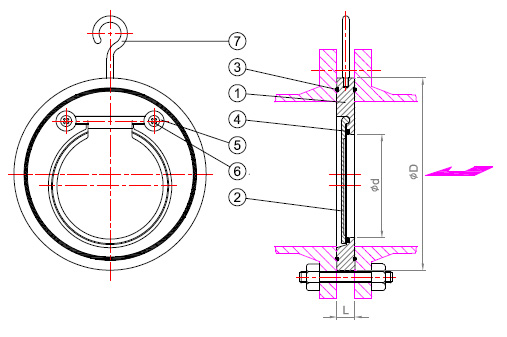

Parts No.	Parts Name	Material
		WCB	CF8	CF8M
1	Body	A216 WCB	A351 CF8	A351 CF8M
2	Disc	A216 WCB / A351 CF8 / A351 CF8M
3	Body Seal	NBR / EPDM / VITON / PTFE
4	Seat	NBR / EPDM / VITON / PTFE / METAL / A.S. Overlay
5	Fix Bush	SS316
6	Socket Head Cap Screw	SS316
7	O-Bolt	A105	SS304

Note:The chart above only lists out some common composition of steel single door wafer check valve parts. We may provide other different parts material composition according to the customer's request or the actual valve working condition.

Seat Material	Medium	Max. W,P. (Mpa)	Max. Temperature Range ( °C )
NBR	W.O.G	1.2	-10 °C to 90 °C
EPDM	W.O.G	1.2	-20 °C to 120 °C
VITON	W.O.G	1.2	-30 °C to 160 °C
PTFE	W.O.G	1.2	-30 °C to 200 °C
Metal	W.O.G & Others	1.5	Same as Body
Metal with Overlay	W.O.G & Others	1.5	Same as Body

NPS		L	∮d	∮D		NPS		L	∮d	∮D
inch	mm	L	∮d	10K	150 LB	inch	mm	L	∮d	10K	150 LB
1/2"	15A	14	8	55	47	6"	150A	20	113	220	220
3/4"	20A	14	9	60	56	8"	200A	27	142	270	278
1"	25A	14	12	70	66	10"	250A	29	190	325	340
1-1/4"	32A	14	16	80	76	12"	300A	35	211	370	409
1-1/2"	40A	14	21	85	85	14"	350A	38	260	415	448
2"	50A	14	30	104	104	16"	400A	45	306	475	510
2-1/2"	65A	14	43	124	124	18"	450A	55	358	530	548
3"	80A	14	50	134	134	20"	500A	65	408	580	605
4"	100A	18	72	155	174	22"	550A	70	450	640	657
5"	125A	18	93	190	190	24"	600A	70	485	690	715
